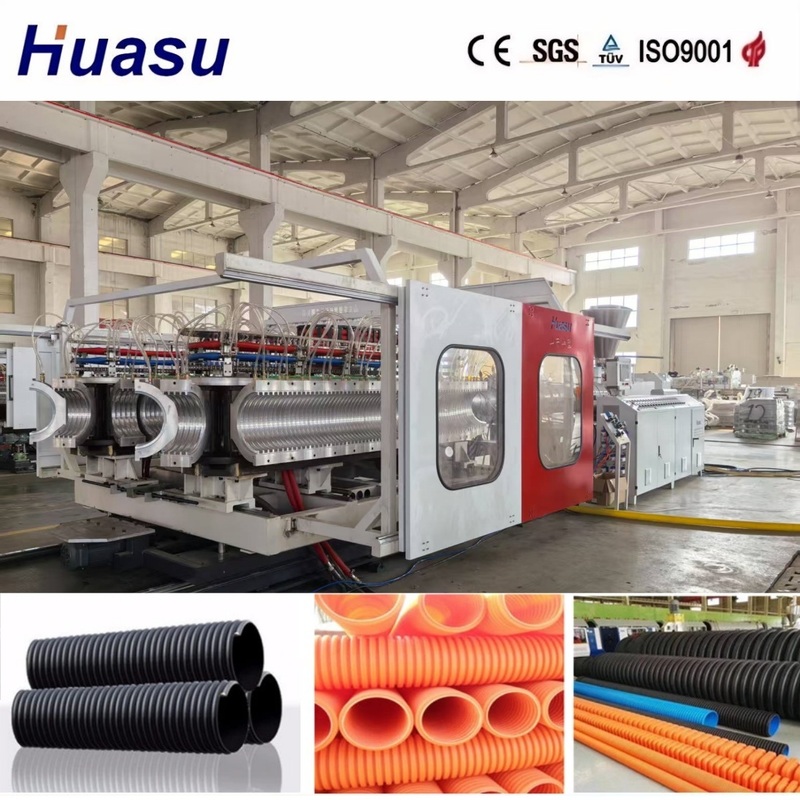

Complete PVC Corrugated Pipe Plant for Single Wall Pipes with 300mm to 1600mm Diameter Range and High Productivity
| ブランド名 | HUASU |
|---|---|
| 証明 | CE,ISO,UL,QS,GMP |
| Model Number | PVC Corrugated Pipe Production Line |
| Minimum Order Quantity | 1 Line |
| 価格 | USD10k-1000k |
| Packaging Details | STANDARD Package |
| Delivery Time | 90day |
| Payment Terms | TT,LC |
| Supply Ability | 100 Line |
無料のサンプルとクーポンを私に連絡してください.
ワットスアップ:0086 18588475571
ウェチャット: 0086 18588475571
スカイプ: sales10@aixton.com
24時間オンラインでサポートします
x商品の詳細
| 原材料 | PE、PP、HDPE/PP、PVC | 特徴 | 高生産性,競争力のある価格,省エネ,自動 |
|---|---|---|---|
| 電気コンポーネント | シーメンス | パイプ範囲 | 32-1600mm |
| タイプ | 標準またはカスタマイズ | 管の層 | 単一の壁、二重壁、マルチウォール |
| に使用されます | プラスチックパイプを作る | 冷却タイプ | 空気または水冷 |
| ハイライト | Complete PVC Corrugated Pipe Plant,300mm to 1600mm Diameter PVC Pipe Extrusion Line,High Productivity Corrugated Pipe Production Line |
||
製品の説明
Complete PVC Corrugated Pipe Plant for Single Wall Pipes (300mm - 1600mm Diameter)
The PVC/PE/MPP corrugated pipe production line features dual single-screw extruders for simultaneous extrusion of inner and outer plastic layers. Our precision temperature control system and optimized screw design ensure uniform plasticization and stable material flow for high-speed production.
The pipe head incorporates a precision flow channel design that efficiently laminates inner and outer layers, guaranteeing uniform wall thickness, high concentricity, and superior resistance to delamination. The modular configuration enables rapid switching between multiple pipe diameters while maintaining dimensional accuracy and structural stability at high production speeds.
This third-generation double wall corrugated pipe line from Shandong HUASU delivers 20-40% increased output and production speed compared to previous models. The system features integrated online belling for immediate pipe forming and utilizes Siemens PLC control for efficient operation management.
Key Features
Pressure water-cooling for mold blocks significantly increases production speed
Low energy consumption design reduces operational costs
High-efficiency vacuum system ensures flawless pipe formation
Precision mold temperature control enhances internal and external pipe quality
Quick-change mold system compatible with multiple production lines
Fully automated extrusion line operation
Synchronized corrugator and extruder control for manufacturing consistency
Hardened screws and barrels for extended equipment lifespan
Comprehensive remote service support
Technical Specifications
| Raw Material | PE, PP, HDPE/PP, PVC |
|---|---|
| Type | Standard or Customized |
| Cooling Type | Air or Water Cooling |
| Pipe Range | 32-1600mm |
| Application | Drainage Pipe, Municipal Engineering, Underground Sewage Pipe, Electric Cable Conduit |
| Max. Line Speed | 3-15m/min |
| Electric Components | Siemens |
| Features | High Productivity, Competitive Price, Energy Saving, Automatic |
| Control Concept | PLC |
| Used For | Plastic Pipe Manufacturing |
Applications
Our advanced pipe production system is engineered for manufacturing high-quality plastic pipes used in water supply networks, drainage systems, and electrical cable protection. The machine produces durable, precision-engineered pipes that meet stringent industry standards for municipal engineering projects, underground sewage systems, and utility infrastructure.
