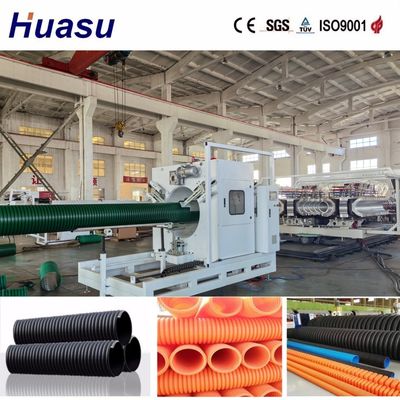

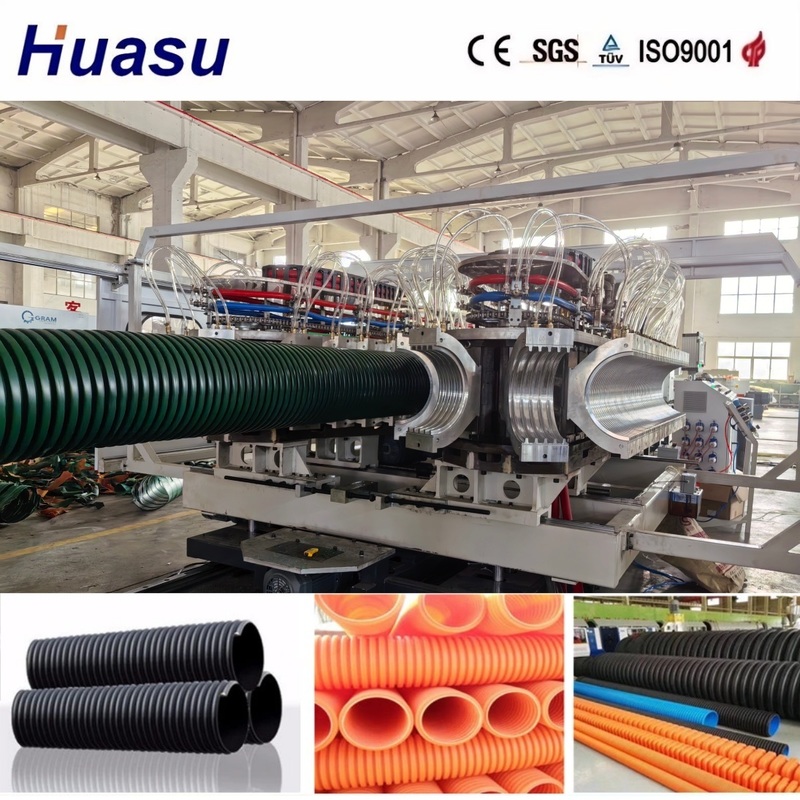

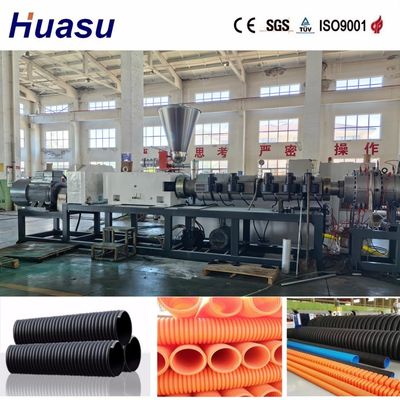

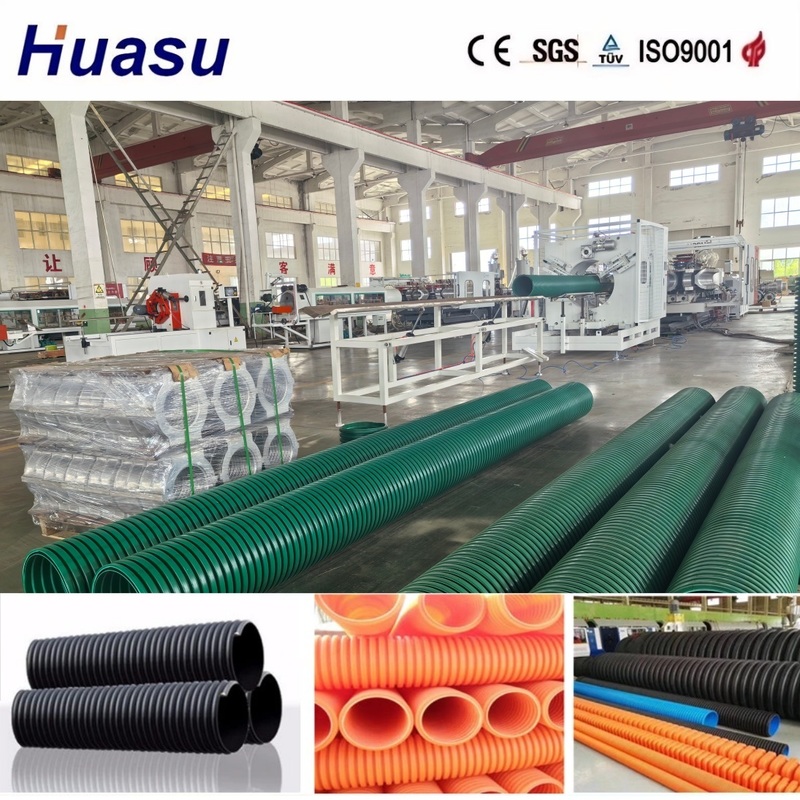

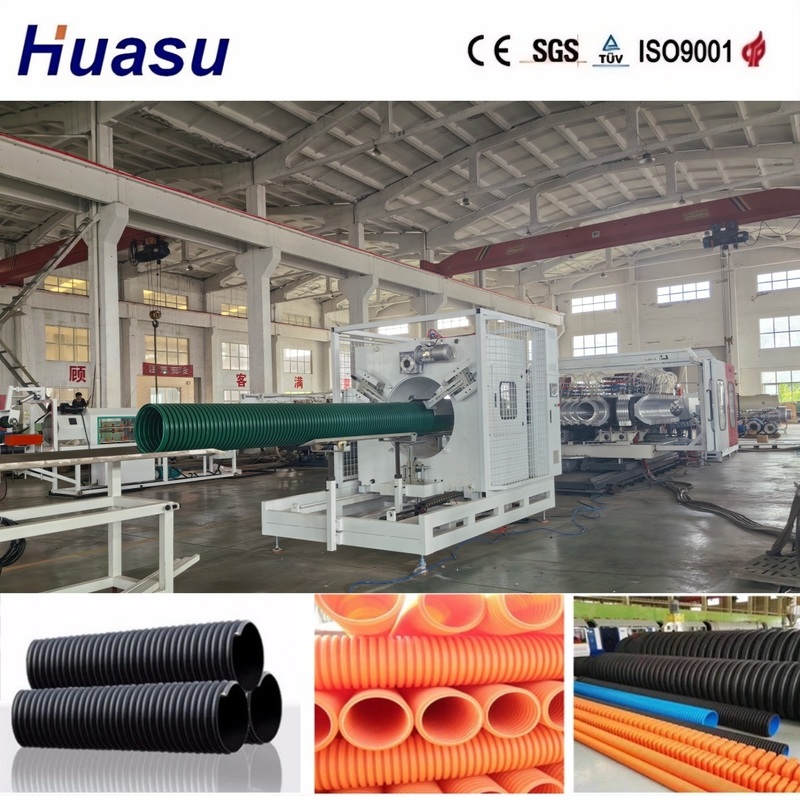

Professional Design Double Wall Corrugated Pipe Machinery with Horizontal Structure and 10-120gsm Adjustable Density

  • Professional Design Double Wall Corrugated Pipe Machinery with Horizontal Structure and 10-120gsm Adjustable Density
  • Professional Design Double Wall Corrugated Pipe Machinery with Horizontal Structure and 10-120gsm Adjustable Density
  • Professional Design Double Wall Corrugated Pipe Machinery with Horizontal Structure and 10-120gsm Adjustable Density
  • Professional Design Double Wall Corrugated Pipe Machinery with Horizontal Structure and 10-120gsm Adjustable Density
  • Professional Design Double Wall Corrugated Pipe Machinery with Horizontal Structure and 10-120gsm Adjustable Density
  • Professional Design Double Wall Corrugated Pipe Machinery with Horizontal Structure and 10-120gsm Adjustable Density
ブランド名 HUASU
証明 CE,ISO
Model Number Plastic Pipe Corrrugated Production Line
Minimum Order Quantity 1 Line
価格 10K-1000K
Packaging Details Standard Seaworthy Packing
Delivery Time 30-90 Days
Payment Terms T/T,L/C
Supply Ability 100 Line

無料のサンプルとクーポンを私に連絡してください.

ワットスアップ:0086 18588475571

ウェチャット: 0086 18588475571

スカイプ: sales10@aixton.com

24時間オンラインでサポートします

x
商品の詳細
製品タイプ PVC / PE / MPP / PA / HDPE コルゲートパイプ 主なモーターパワー 20-350kw
機械による応用 PE MPP PPR PERTパイプを製造する 最大容量 60-2000kg/h
加工されたプラスチック原材料 PVC / PE / MPP / PA / HDPE 最大出力 カスタマイズ
密度 10-120gsm 調整可能 パイプの直径 32mm-1600mm
ハイライト

Adjustable Density Double Wall Corrugated Pipe Machinery

,

Professional Design Plastic Pipe Extrusion Line

,

Horizontal Structure Corrugated Pipe Production Line
メッセージ
製品の説明
Professional Design Double Wall Corrugated Pipe Machinery
Horizontal Structure with Adjustable Diameter (32-1600mm)
The double wall corrugated pipe line from Shandong HUASU is a 3rd generation improved product that outperforms previous models with 20-40% greater extruder output and production speed. This advanced system includes online belling capability to guarantee optimal performance of the final corrugated pipe products. The operation is fully controlled by Siemens PLC systems for precise and efficient production processes.
Key Features
Newly designed closed molding machine with specialized high-efficiency cooling system for aluminum modules
High-speed, high-output single-screw extrusion machine with professional corrugated pipe extrusion mold
Interchangeable modules made from premium alloy aviation aluminum (minimum 5% copper content)
Precision pressure casting process eliminates light pores and prevents deformation during extended usage
Customizable waveform configurations available to meet specific requirements
Computer-controlled automatic DWC cutter ensures precise cutting positions and stable operation
Technical Specifications
Extruder Material 38CrMoAlA
Plastic Raw Material Processed PVC / PE / MPP / PA / HDPE
Pipe Diameter 32mm-1600mm
Max Output Customized
Structure Horizontal
Motor Brand Siemens
Max Capacity 60-2000kg/h
Density 10-120gsm Adjustable
Product Type PVC / PE / MPP / PA / HDPE Corrugated Pipe
Application Plastic Pipe Production
Applications
The HUASU Plastic Pipe Corrugated Production Line is a versatile machine for manufacturing single-wall corrugated pipes with precision and efficiency. Suitable for drainage systems, cable protection, and various industrial applications requiring durable plastic piping solutions.
Certifications: CE and ISO certified
Origin: China
Minimum Order: 1 line
Price Range: 10K-1000K
Delivery: 30-90 days (standard seaworthy packing)
Payment Terms: T/T, L/C
Supply Capacity: 100 lines
