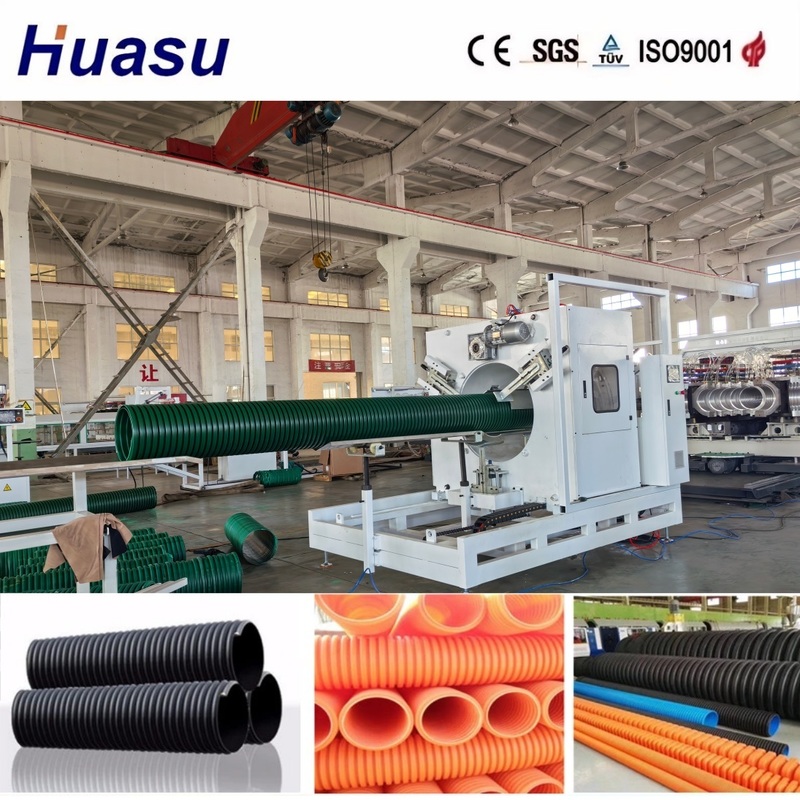

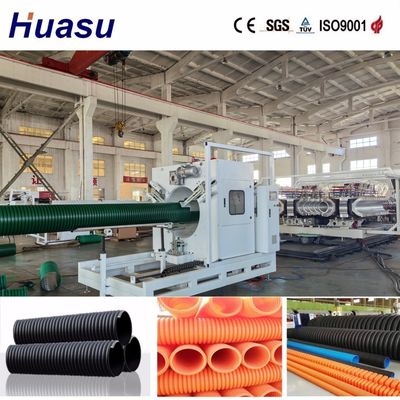

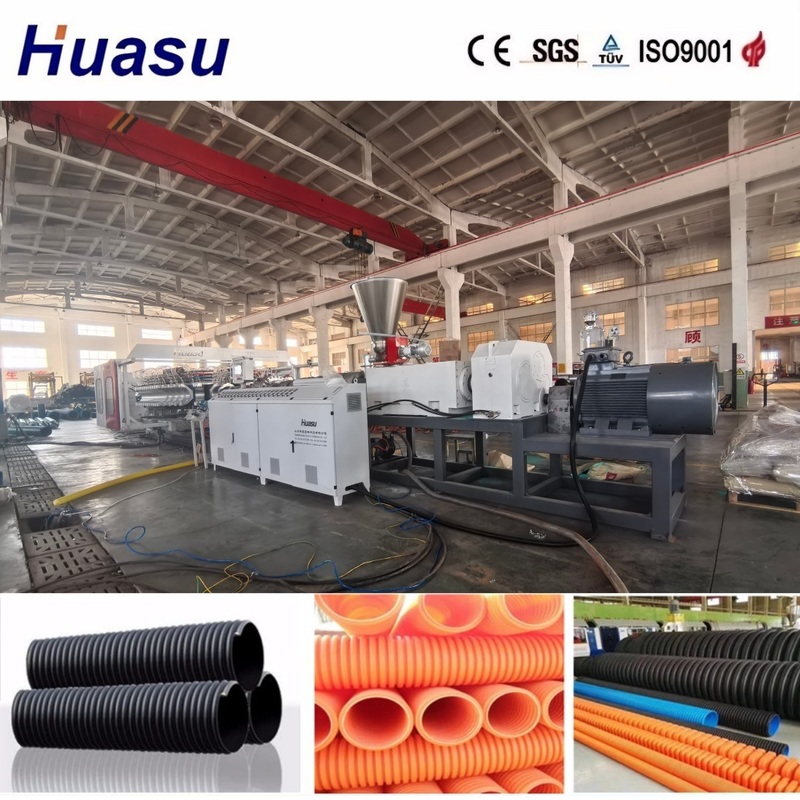

High Speed Cooling Type DWC Pipe Extrusion Line with 32-1600mm Pipe Diameter and 0.5-5m/min Production Speed

  • High Speed Cooling Type DWC Pipe Extrusion Line with 32-1600mm Pipe Diameter and 0.5-5m/min Production Speed
  • High Speed Cooling Type DWC Pipe Extrusion Line with 32-1600mm Pipe Diameter and 0.5-5m/min Production Speed
  • High Speed Cooling Type DWC Pipe Extrusion Line with 32-1600mm Pipe Diameter and 0.5-5m/min Production Speed
  • High Speed Cooling Type DWC Pipe Extrusion Line with 32-1600mm Pipe Diameter and 0.5-5m/min Production Speed
  • High Speed Cooling Type DWC Pipe Extrusion Line with 32-1600mm Pipe Diameter and 0.5-5m/min Production Speed
  • High Speed Cooling Type DWC Pipe Extrusion Line with 32-1600mm Pipe Diameter and 0.5-5m/min Production Speed
  • High Speed Cooling Type DWC Pipe Extrusion Line with 32-1600mm Pipe Diameter and 0.5-5m/min Production Speed
ブランド名 HUASU
証明 CE,ISO
Model Number SBG
Minimum Order Quantity 1 SET
価格 10K-1M
Packaging Details Container Standard Packaging
Delivery Time 60-90days
支払条件 T/T
Supply Ability 100SET/year

無料のサンプルとクーポンを私に連絡してください.

ワットスアップ:0086 18588475571

ウェチャット: 0086 18588475571

スカイプ: sales10@aixton.com

24時間オンラインでサポートします

x
商品の詳細
キーセールスポイント 自動 プロシージャの処理 原料供給→スクリュー押出→成形→水冷→切断
パイプの直径 32-1600mm 生産速度 0.5〜5m/min
冷却システム 水冷および空冷システム 特徴 生産性の高い、競争力のある価格、省エネ、自動
冷却タイプ 空冷および水冷 プラスチック製の原料 PVC / PE / MPP / PA / HDPE
ハイライト

32-1600mm Pipe Diameter DWC Pipe Extrusion Line

,

0.5-5m/min Production Speed Double Wall Corrugated Pipe Production Line

,

Cooling Type Corrugated Pipe Extrusion Machine
メッセージ
製品の説明
High Speed Cooling Type Dual Wall Corrugated Pipe Production Line
Product Description
The double wall corrugated pipe line represents the 3rd generation improved product from Shandong HUASU, delivering 20-40% greater extruder output and production speed compared to earlier models. This advanced system features online belling capability to ensure optimal performance of final corrugated pipe products. The entire operation is monitored and controlled by Siemens PLC systems.
Key Features

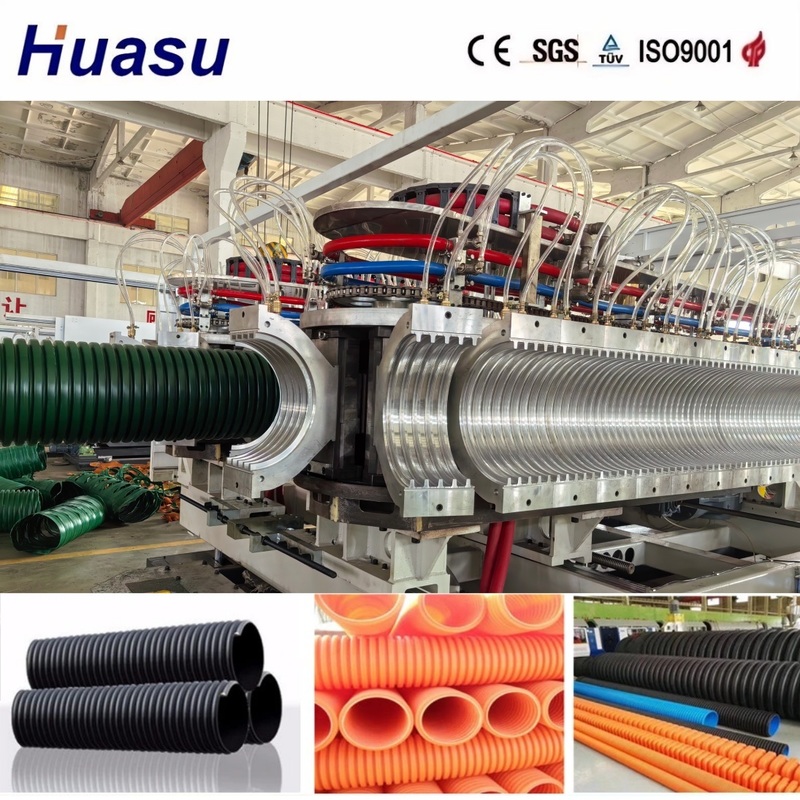

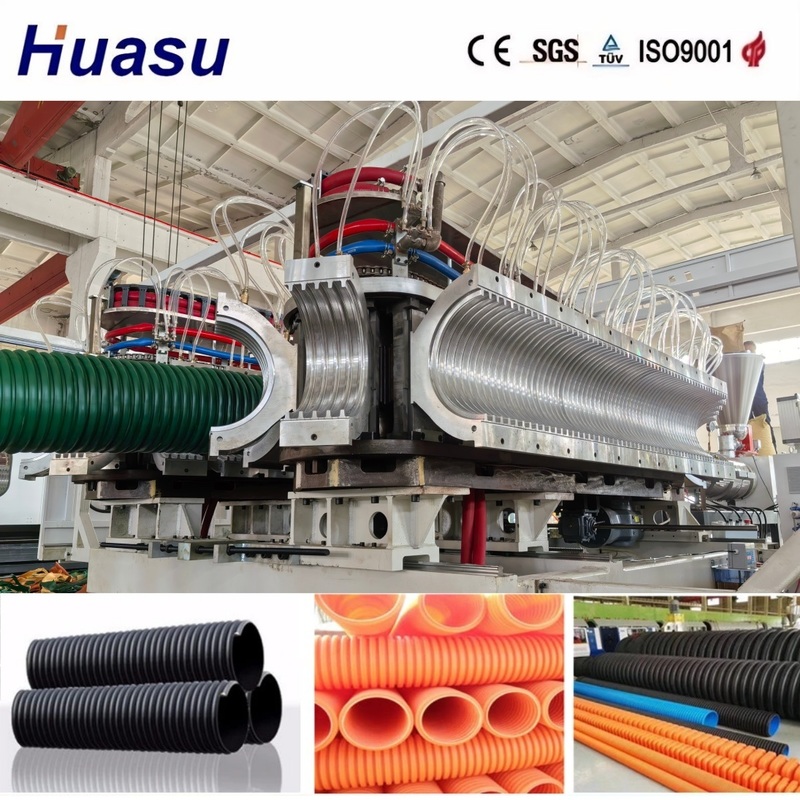

Newly designed closed molding machine with specialized high-efficiency cooling system for aluminum modules, enhancing molding process performance
High-speed, high-output single-screw extrusion machine with professional corrugated pipe extrusion mold for precise, efficient production
Interchangeable modules constructed from premium alloy aviation aluminum (minimum 5% copper content) for durability and reliability
Precision pressure casting process eliminates light pores and prevents deformation during prolonged use
Customizable waveform configurations available to meet specific requirements

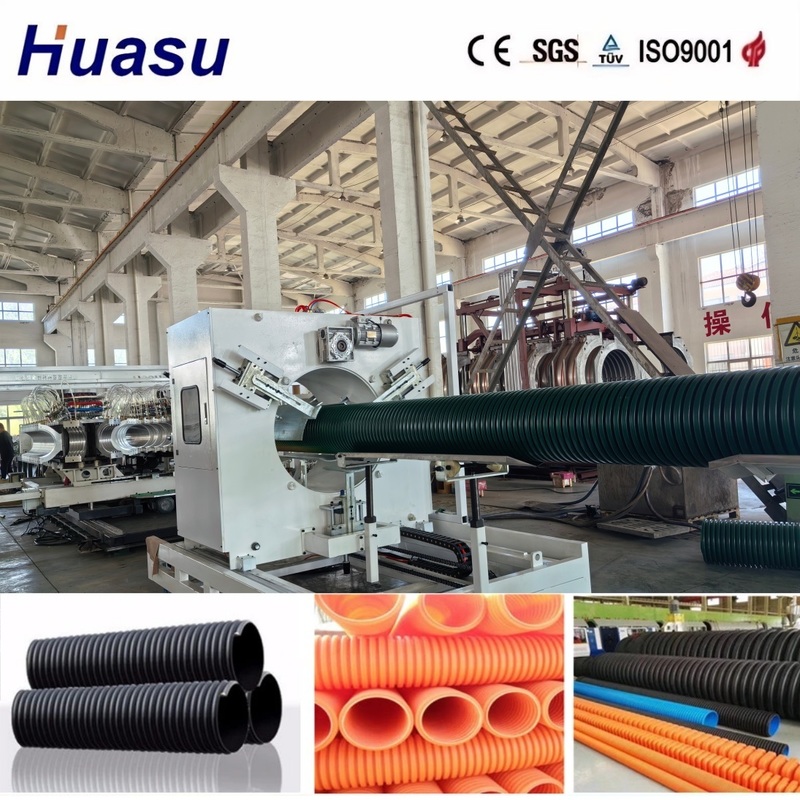

Computer-controlled automatic DWC cutter ensures precise cutting positions and stable operation
Technical Specifications
Parameter Specification
Production Speed 0.5-5m/min
Features High Productivity, Competitive Price, Energy Saving, Automatic
Application Manufacturing Of Double Wall Corrugated Pipes
Cooling Type Air Cooling And Water Cooling
Plastic Raw Material PVC / PE / MPP / PA / HDPE
Pipe Diameter 32-1600mm
Capacity 60-2000kg/h
Cooling System Water And Air Cooling System
Processing Procedure Raw Material Feeding → Screw Extrusion → Forming → Water Cooling → Cutting
Key Selling Points Automatic
Applications
Water supply systems
Drainage and sewage systems
Electrical cable protection conduits
Municipal engineering projects
Designed to meet stringent industry standards, the pipes produced by this line offer outstanding durability, performance, and reliability for all specified applications.
